Assign Thickness

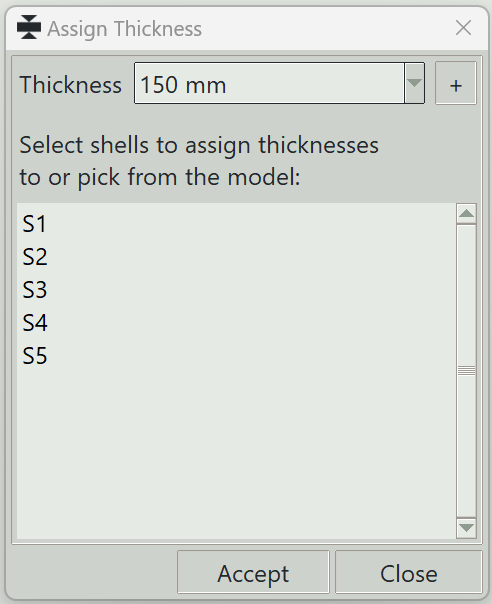

This dialog is used to assign a thickness to selected shells in the model. You can assign a thickness by selecting shells in the list and clicking the Accept button, or by picking from the modelling window.

1. Thickness name

Selects the thickness name to assign.

2. Add button (+)

Opens the thickness definition window so that you can define a new thickness.

3. Shells list

Displays a list of available shells. Selecting items from this list allows the chosen thickness to be assigned to those shells.

4. Accept button

Assigns the selected thickness to the chosen shells.

5. Close button

Closes this dialog and ends the thickness assignment command.
