Assign Frame Load

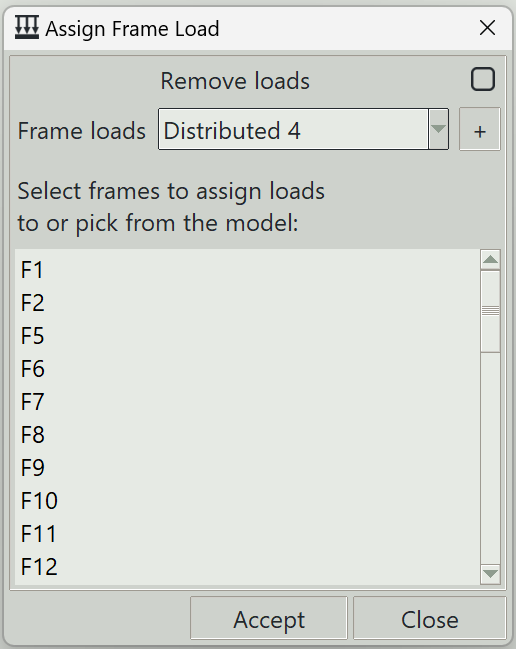

This dialog is used to assign a frame load to selected frames in the model. You can assign a load by selecting frames in the list and clicking the Accept button, or by picking from the modelling window.

1. Remove loads

When checked, loads will be removed from selected or clicked frames.

2. Frame loads

Selects the load to assign to frames.

3. Add button (+)

Opens the load definition window so that you can define a new load.

4. Frames list

Displays a list of available frames. Selecting items from this list allows the chosen load to be assigned to those frames.

5. Accept button

Assigns the selected load to the chosen frames.

6. Close button

Closes this dialog and ends the load assignment command.
