Assign Shell Load

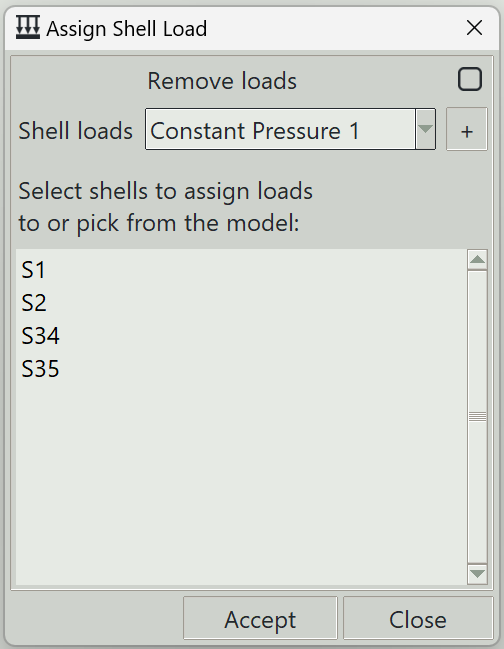

This dialog is used to assign a shell load to selected shells in the model. You can assign a load by selecting shells in the list and clicking the Accept button, or by picking from the modelling window.

1. Remove loads

When checked, loads will be removed from selected or clicked shells.

2. Shell loads

Selects the load to assign to shells.

3. Add button (+)

Opens the load definition window so that you can define a new load.

4. Shells list

Displays a list of available shells. Selecting items from this list allows the chosen load to be assigned to those shells.

5. Accept button

Assigns the selected load to the chosen shells.

6. Close button

Closes this dialog and ends the load assignment command.
