Copy

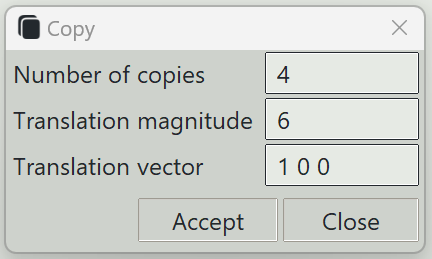

This dialog is used to copy frames or shells. Copied elements carry with them some assigned properties. Copying is achieved by picking two points which determine the vector and magnitude of translation. More parameters can be specified to fine control the process. Copying can also be achieved by entering the required parameters and clicking the Accept button.

1. Number of copies

The number of copies to create. If unspecified, the program will assume one copy is required.

2. Translation magnitude

A value specifying the amount of translation from position of the original element to the copy. If unspecified, the magnitude of the translation vector will be used.

3. Translation vector

The i, j, k components defining a non-zero vector. If the translation magnitude is specified, the magnitude of this vector is ignored.

4. Accept button

Starts copying the selected objects using the entered parameters.

5. Close button

Closes this dialog and exits the copying command.
