Shell Constant Pressure Load Definition

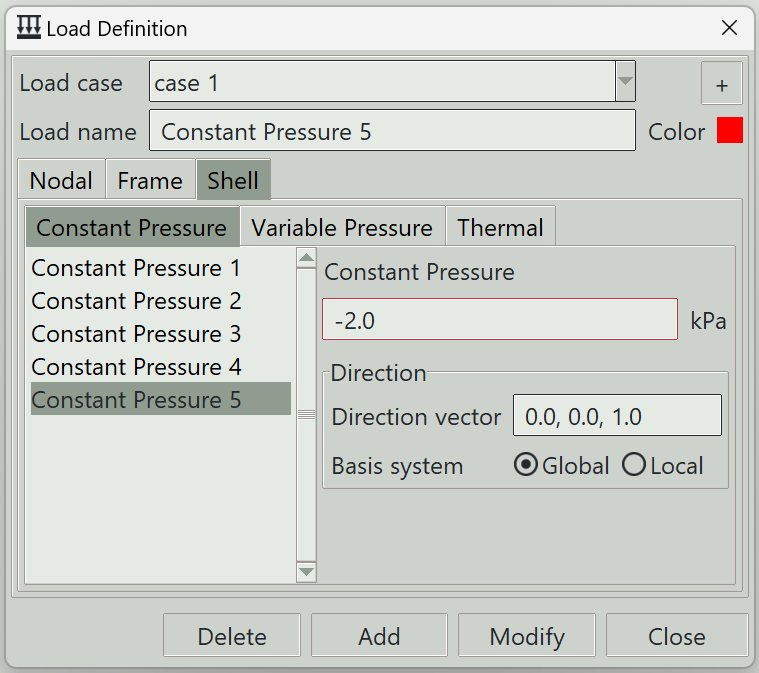

This tab is used to define constant pressure loads that can be assigned to shells. The left pane displays a list of shell pressure loads available in the model, while the right pane shows the parameters of the selected load. The same area is also used to input parameters when creating a new shell constant pressure load.

1. Load case

Select the load case under which this load is defined.

2. + button

Opens the load case definition window so that you can add a new load case.

3. Load name

A unique name for the load. It can be left blank, in which case the program will generate one automatically.

4. Color

The color assigned to this load for visualisation purposes.

5. Constant Pressure

Specifiy the constant pressure on the shell.

6. Direction

6.1 Direction vector

The i, j, k components of the vector that define the direction of the pressure.

6.2 Basis system

Whether the direction vector above is in the global coordinate system, or the local coordinate system of the shell.

7. Delete button

Removes the selected load from the model.

8. Add button

Creates a new load using the specified parameters.

9. Modify button

Updates the parameters of the selected load.

10. Close button

Closes the window.
