Assign Nodal Load

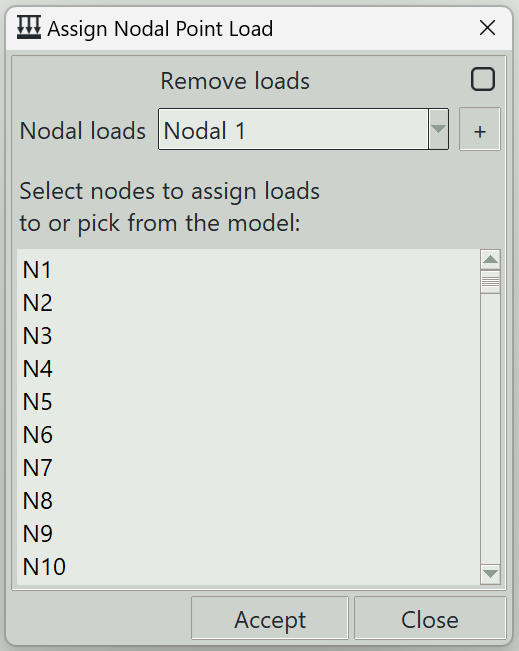

This dialog is used to assign a nodal load to selected nodes in the model. You can assign a load by selecting nodes in the list and clicking the Accept button, or by picking from the modelling window.

1. Remove loads

When checked, loads will be removed from selected or clicked nodes.

2. Nodal loads

Selects the load to assign to nodes.

3. Add button (+)

Opens the load definition window so that you can define a new load.

4. Nodes list

Displays a list of available nodes. Selecting items from this list allows the chosen load to be assigned to those nodes.

5. Accept button

Assigns the selected load to the chosen nodes.

6. Close button

Closes this dialog and ends the load assignment command.
