AFNOR SSLS27: Plate under perpendicular shear

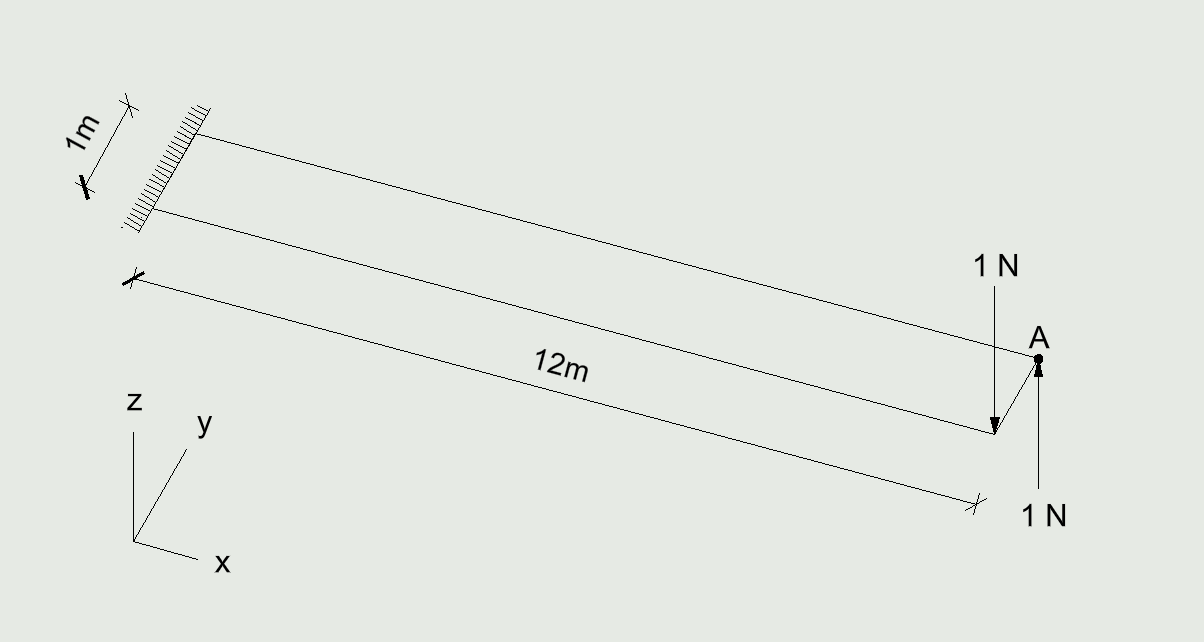

1. Problem definition
-
Material properties:
- Young's modulus, E = 10 MPa
- Poisson ratio, nu = 0.3
- Shear modulus, nu = 0.0 Pa
-
Thickness properties:
- Thickness: 50 mm

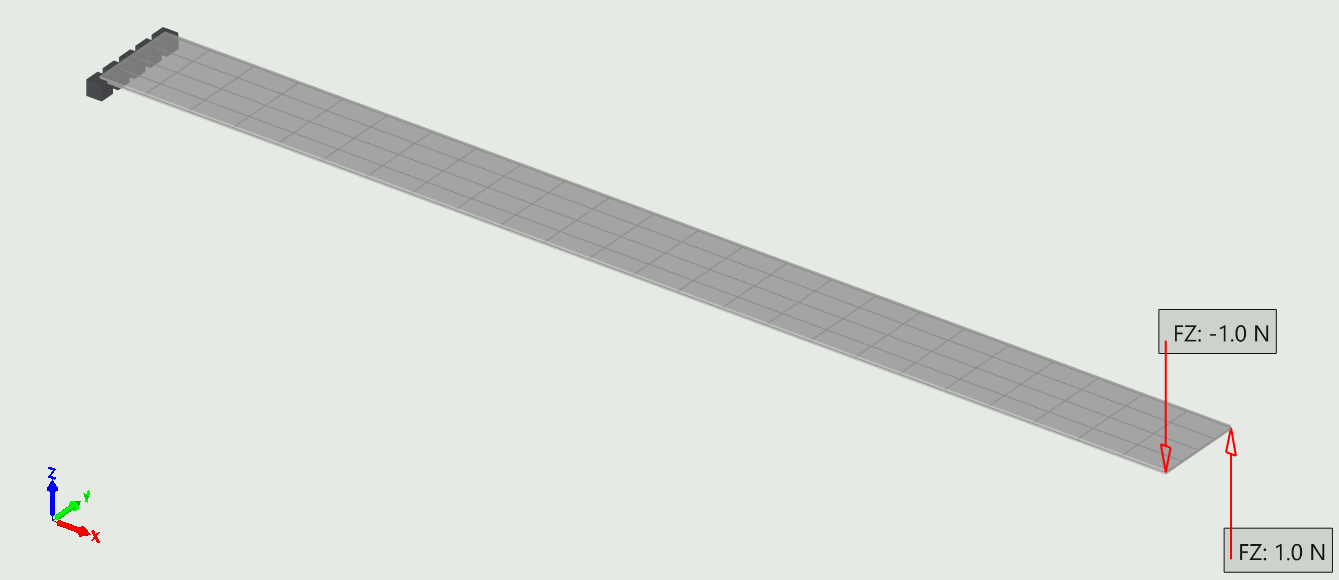

2. Songeya model
3. Results

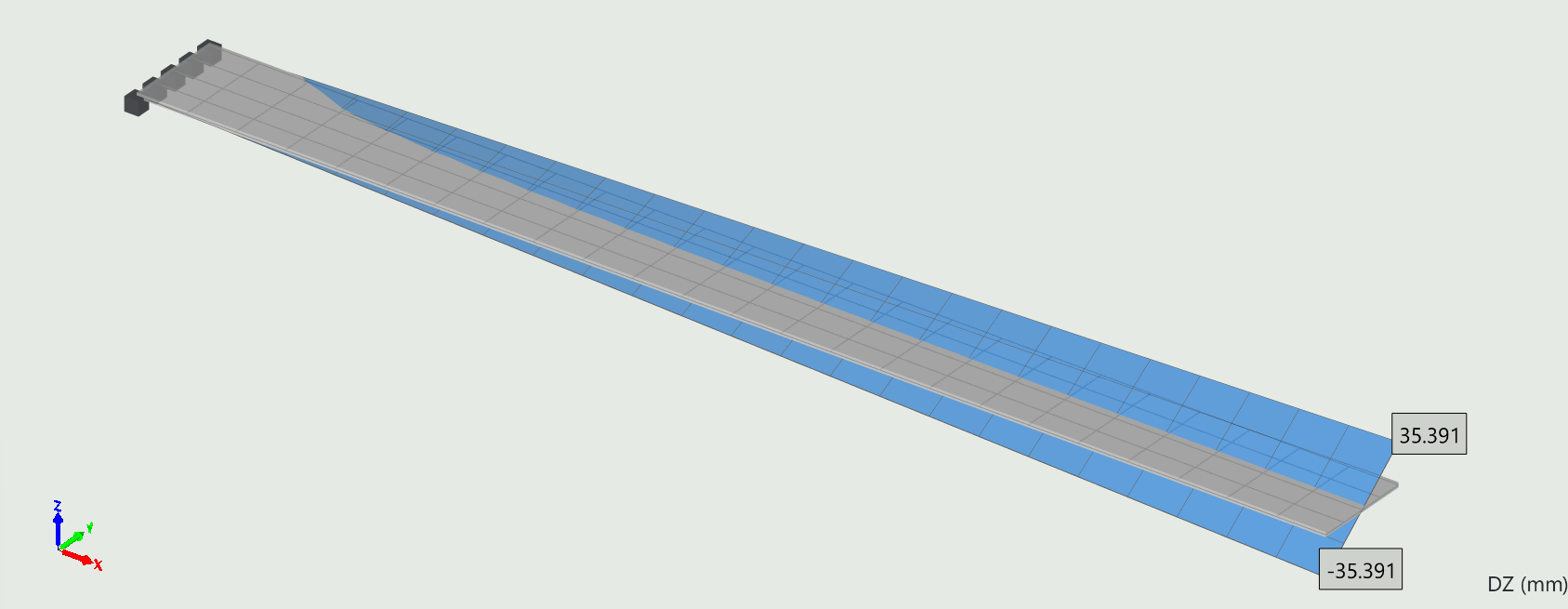

3.1 Total deformation
4. Comparison
| Position | Parameter description | Songeya results | AFNOR results | Difference | Comment |
|---|---|---|---|---|---|
| A | Translation, TZ (mm) | 35.39 | 35.37 | 0.1% | OK |
5. Reference
Société française des mécaniciens. (1990). Guide de validation des progiciels de calcul de structures. Afnor.
