AFNOR SSLS23a: Cylindrical membrane subjected to bending

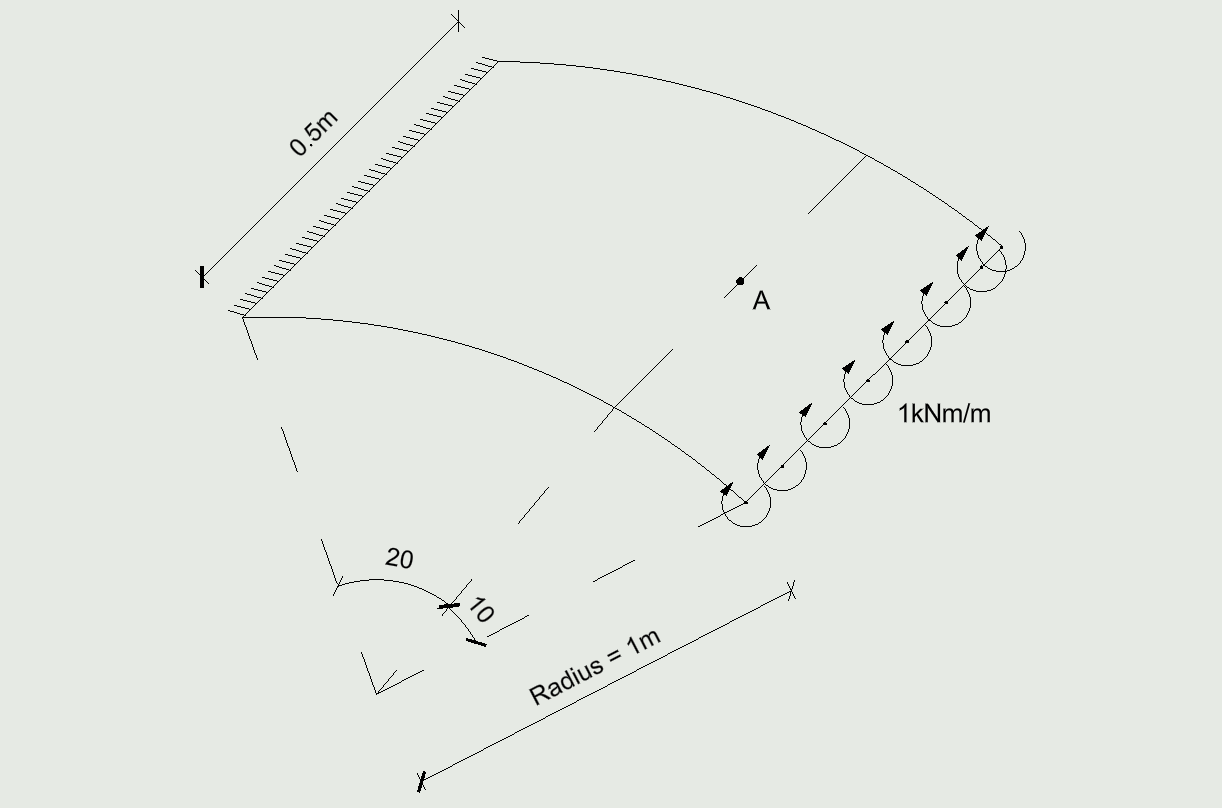

1. Problem definition
-
Material properties:
- Young's modulus, E = 210 GPa
- Poisson ratio, nu = 0.3
-
Thickness properties:
- Thickness: 10 mm

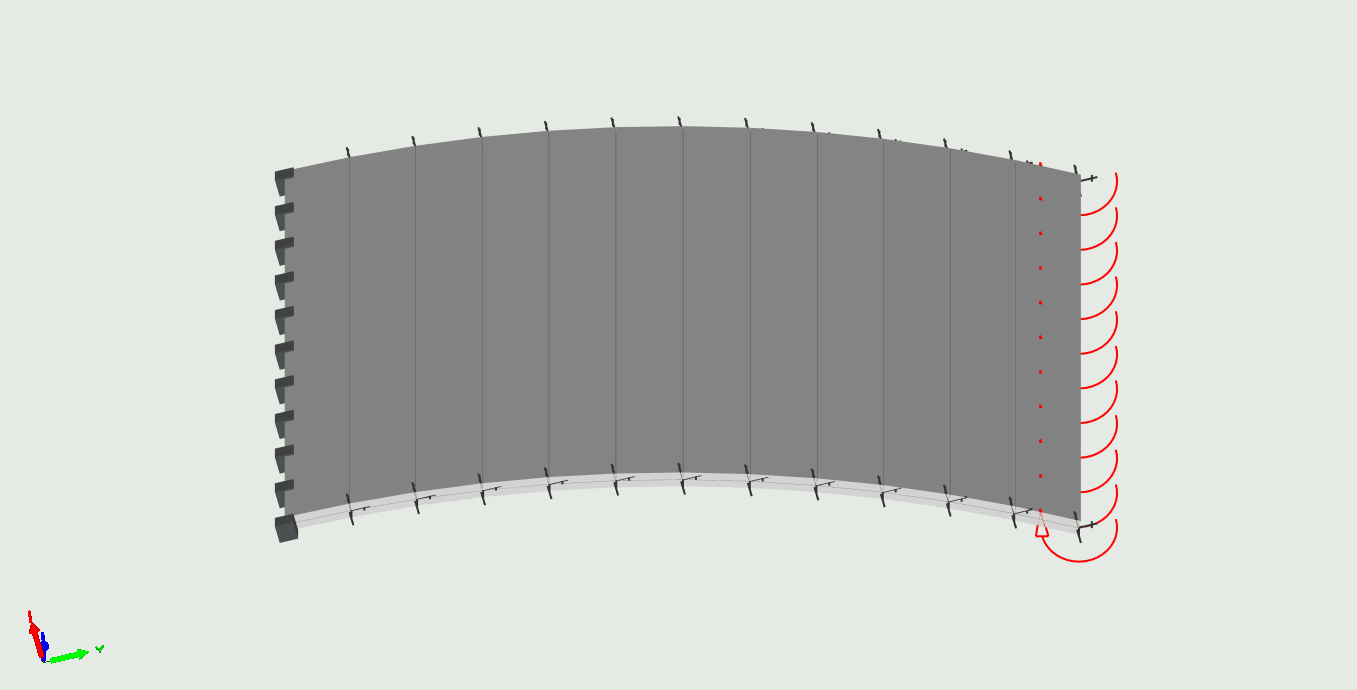

2. Songeya model
3. Results

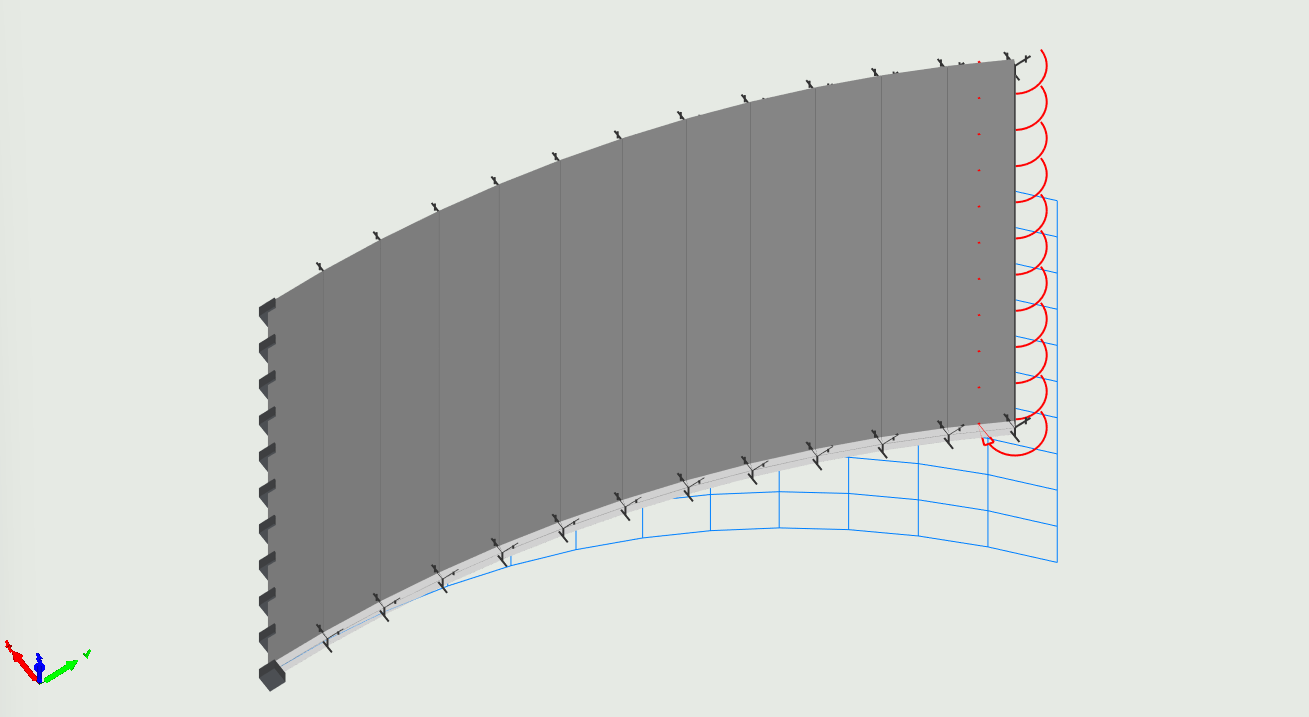

3.1 Total deformation

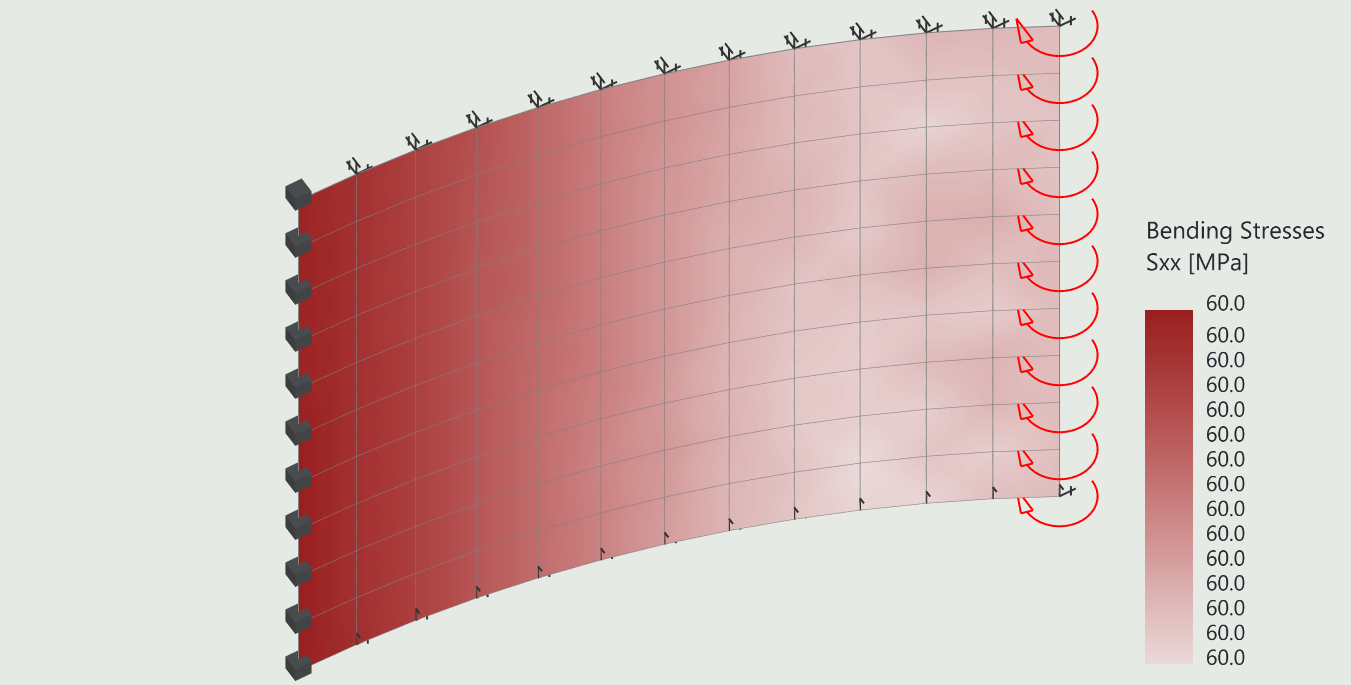

3.2 Bending stresses (outer face), Sxx
4. Comparison
| Position | Parameter description | Songeya results | AFNOR results | Difference | Comment |
|---|---|---|---|---|---|
| All | Circumferential stress on outer face (MPa) | 60 | 60 | 0.0% | OK |
5. Reference
Société française des mécaniciens. (1990). Guide de validation des progiciels de calcul de structures. Afnor.
